Scudoflex NBR
Flexible elastomeric foamFlexible, closed-cell elastomeric insulation with high moisture-vapour resistance and low thermal conductivity.
Built for reliable thermal and moisture control.

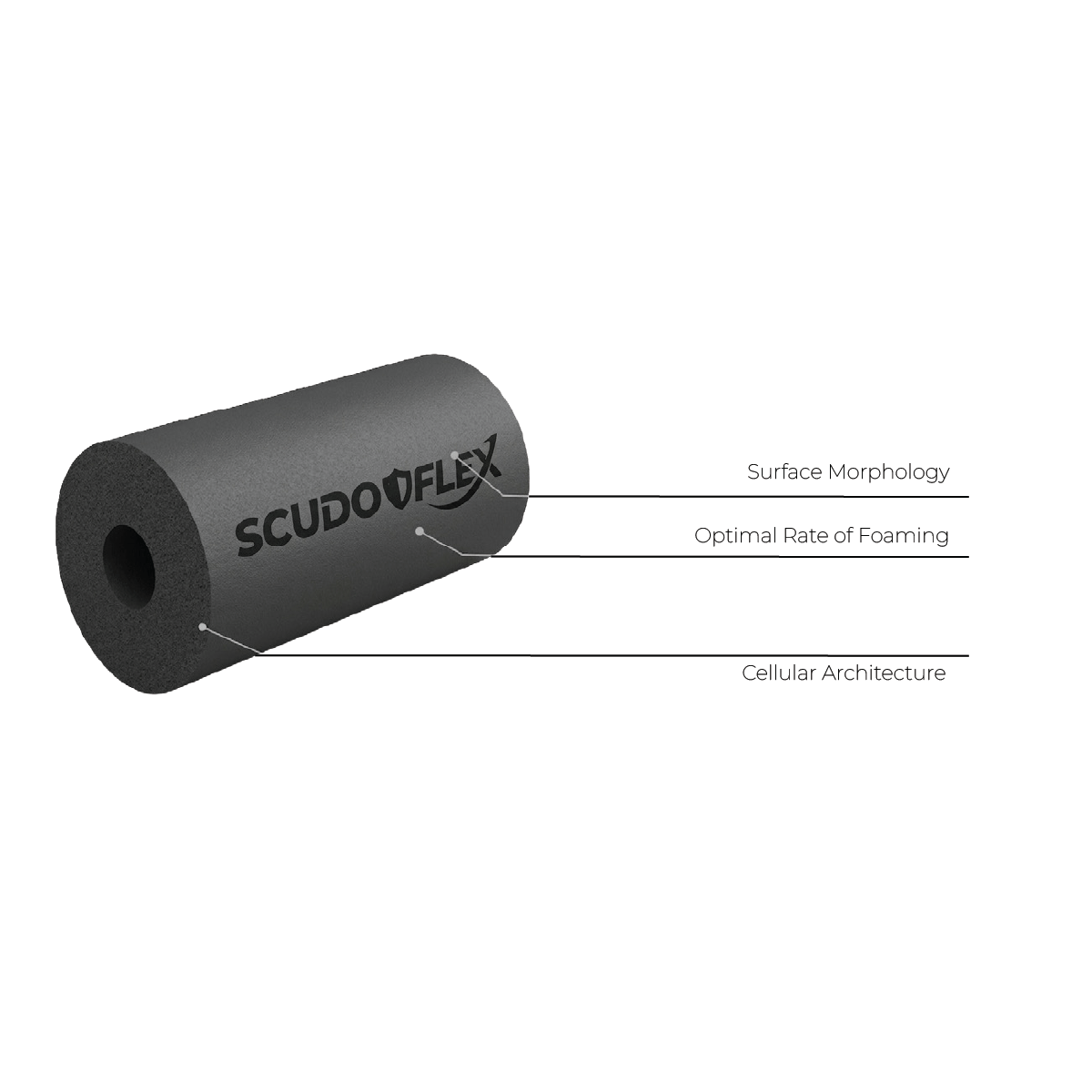

Scudoflex NBR is engineered for duct and pipe insulation across HVAC, chilled-water, cold-water, heating and cooling systems. Its refined closed-cell structure helps limit heat transfer and control condensation across demanding temperature gradients.
Available as tubes, rolls and sheets, with unfaced, aluminium-foil and glass-cloth finishes. External installations require suitable protection from weather and ultraviolet exposure.
Key attributes
- Non-porous closed-cell composition
- Low thermal conductivity
- High moisture-vapour resistance
- Flexible and installer-friendly
- Suitable for cryogenic service
- Ozone-stable material
- Biostatic and microbial-resistant
- Foil and glass-cloth facing options
Typical applications
- HVAC ductwork
- Chilled-water pipework
- Refrigeration services
- Heating and cooling systems
- Mechanical equipment
- Marine and coastal projects
NBR products for pipework, ductwork and equipment.
Choose plain NBR, aluminium-foil-faced or glass-fabric-faced formats to suit the installation and required finish.

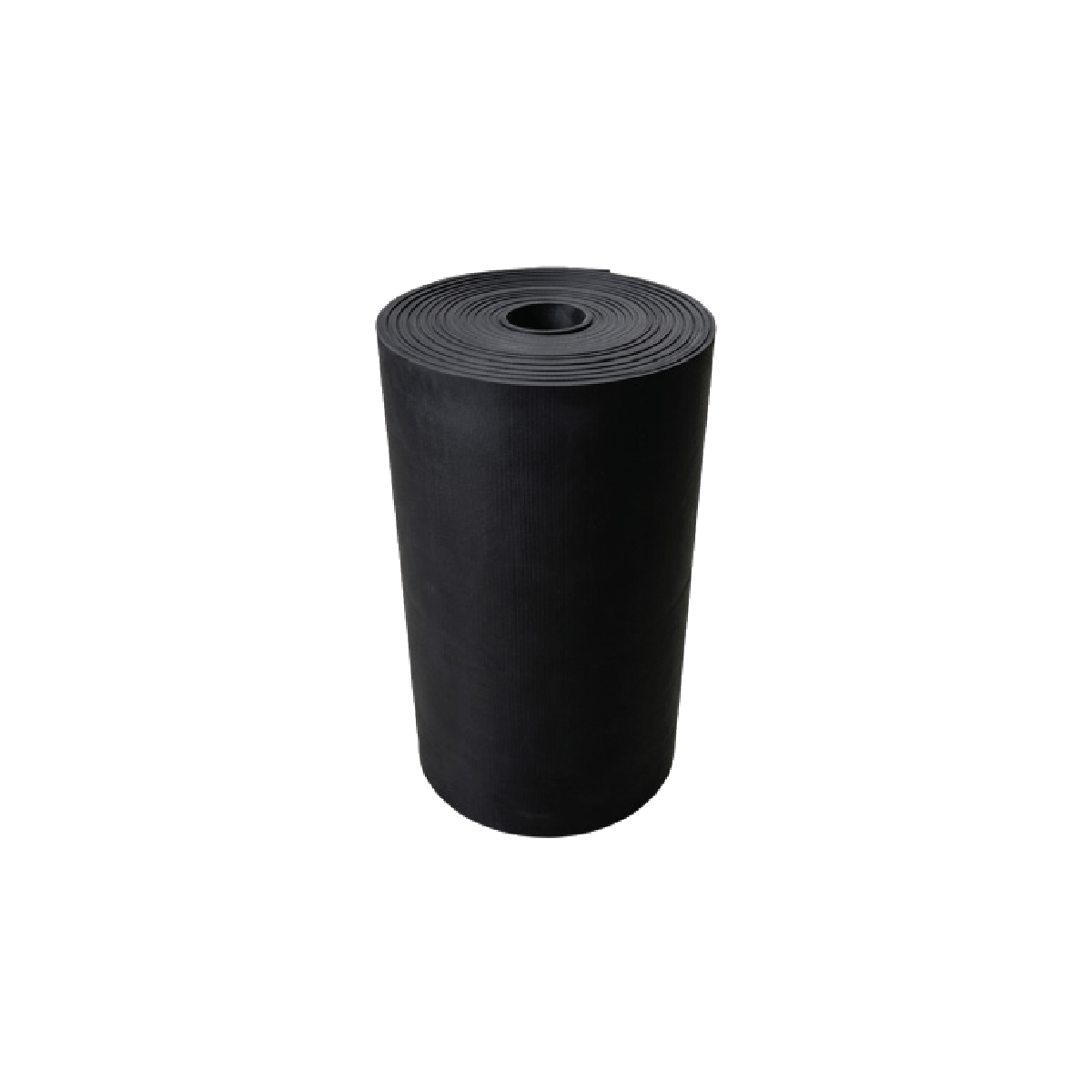

NBR Tubes & Rolls
Flexible closed-cell NBR formats for HVAC pipework, chilled-water services, ductwork and equipment insulation.
Request a quote

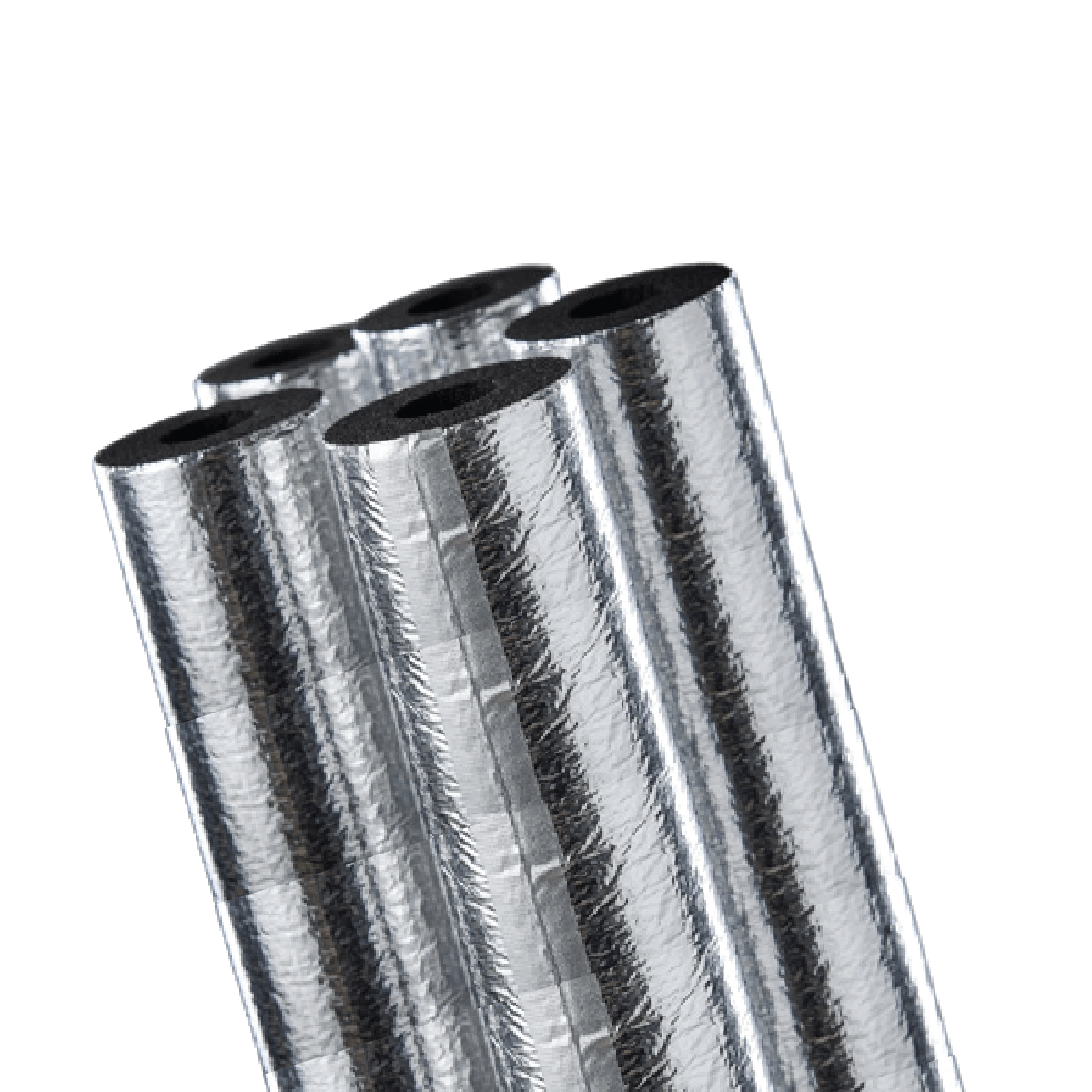

NBR with Foil Coating
Foil-faced NBR tubes and sheets for interior installations that benefit from greater physical durability and a clean finish.
Request a quote

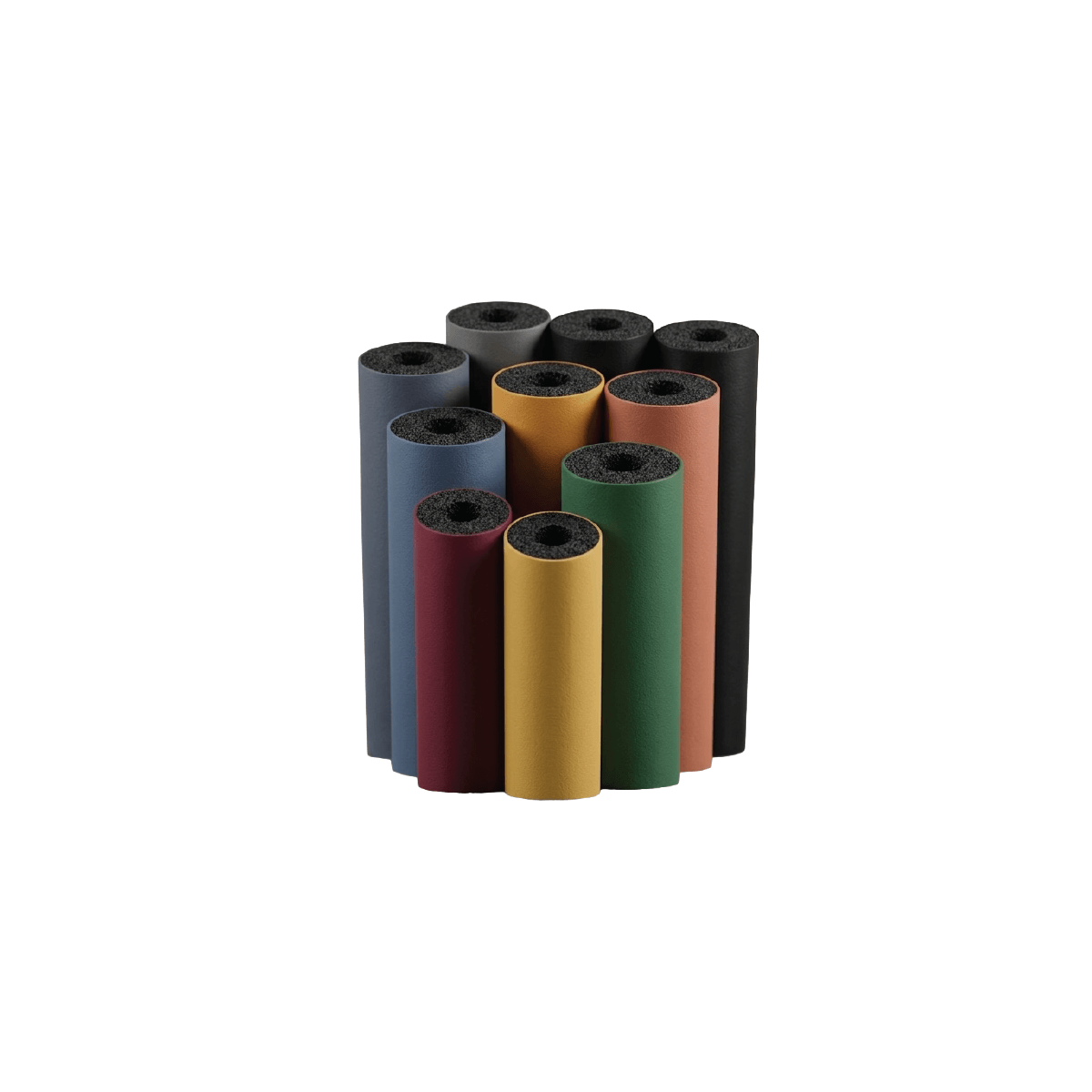

NBR with Glass Fabric
Glass-fabric-faced NBR piping and sheets for enhanced durability and a distinctive black, blue, green or red finish.

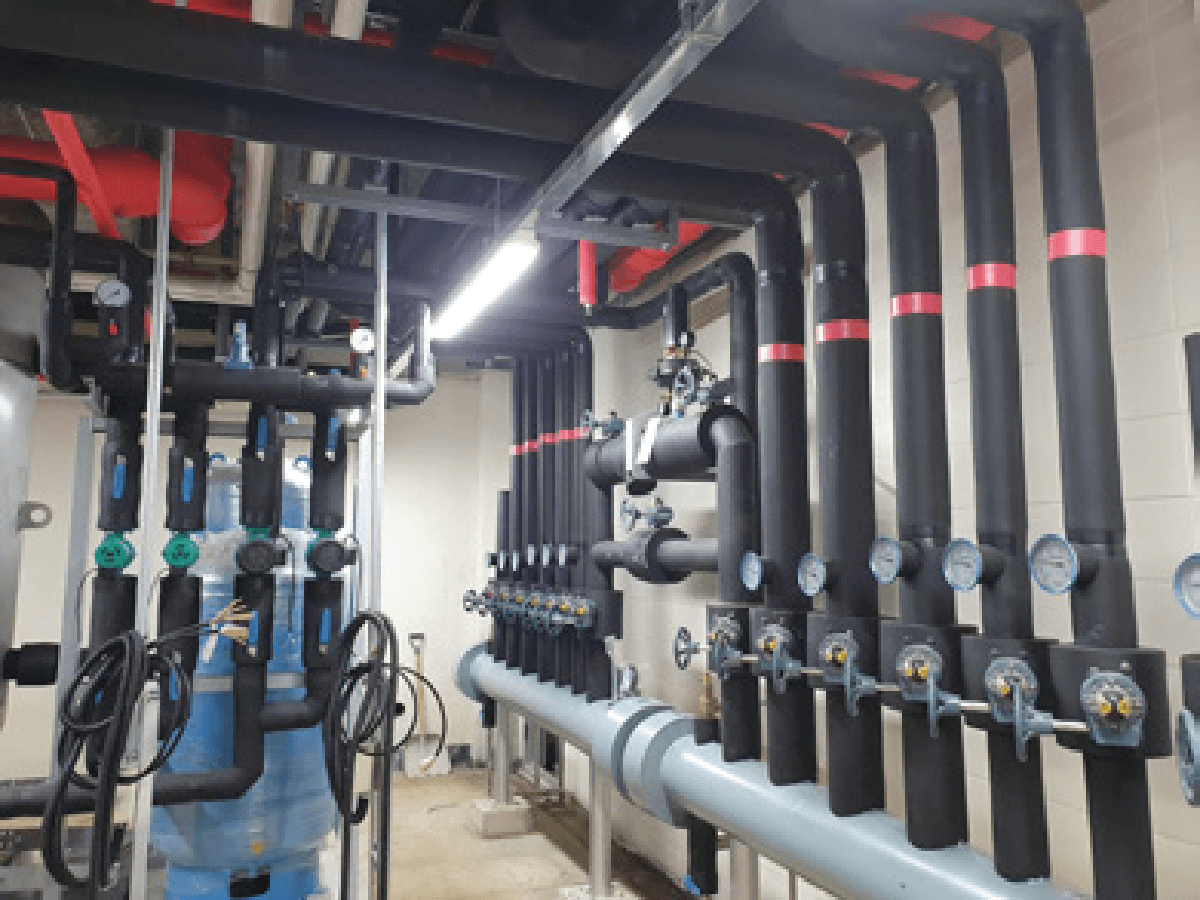

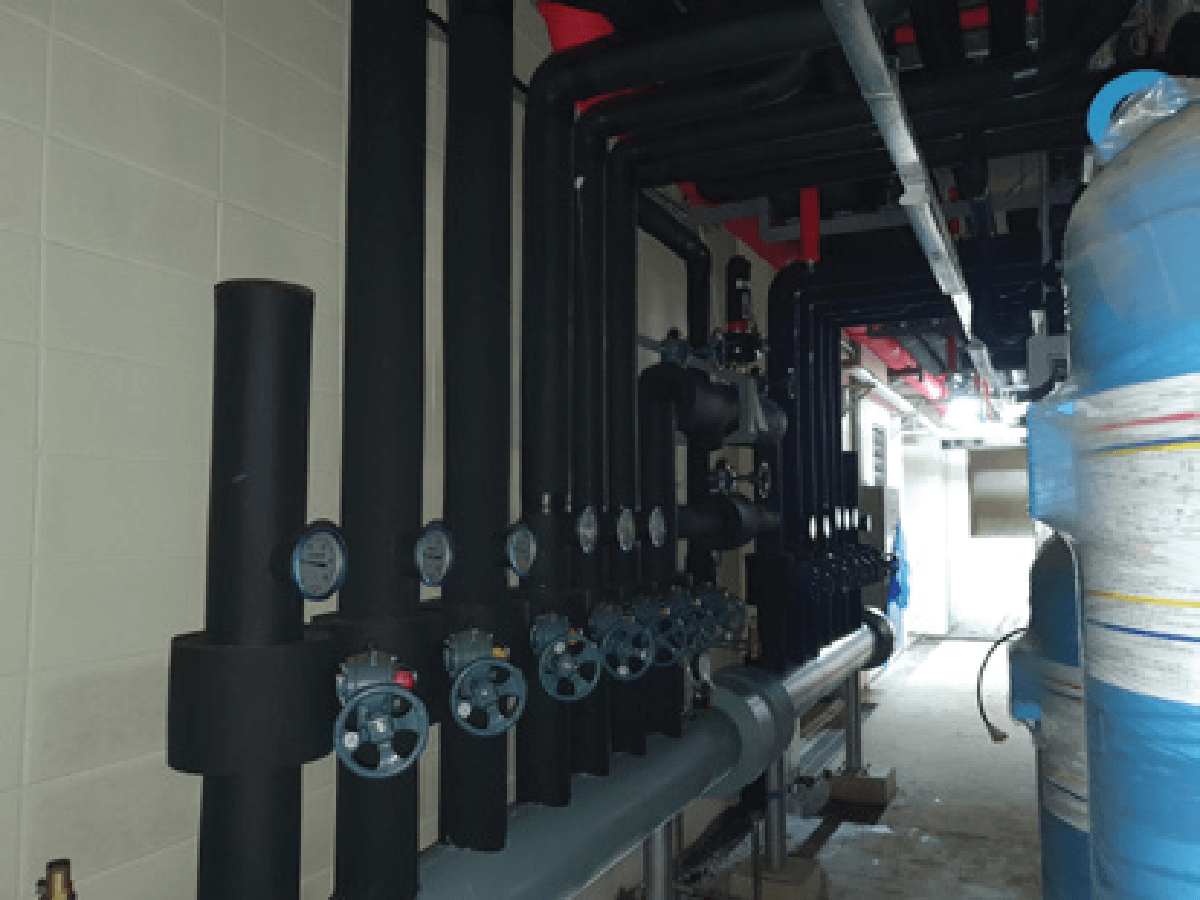

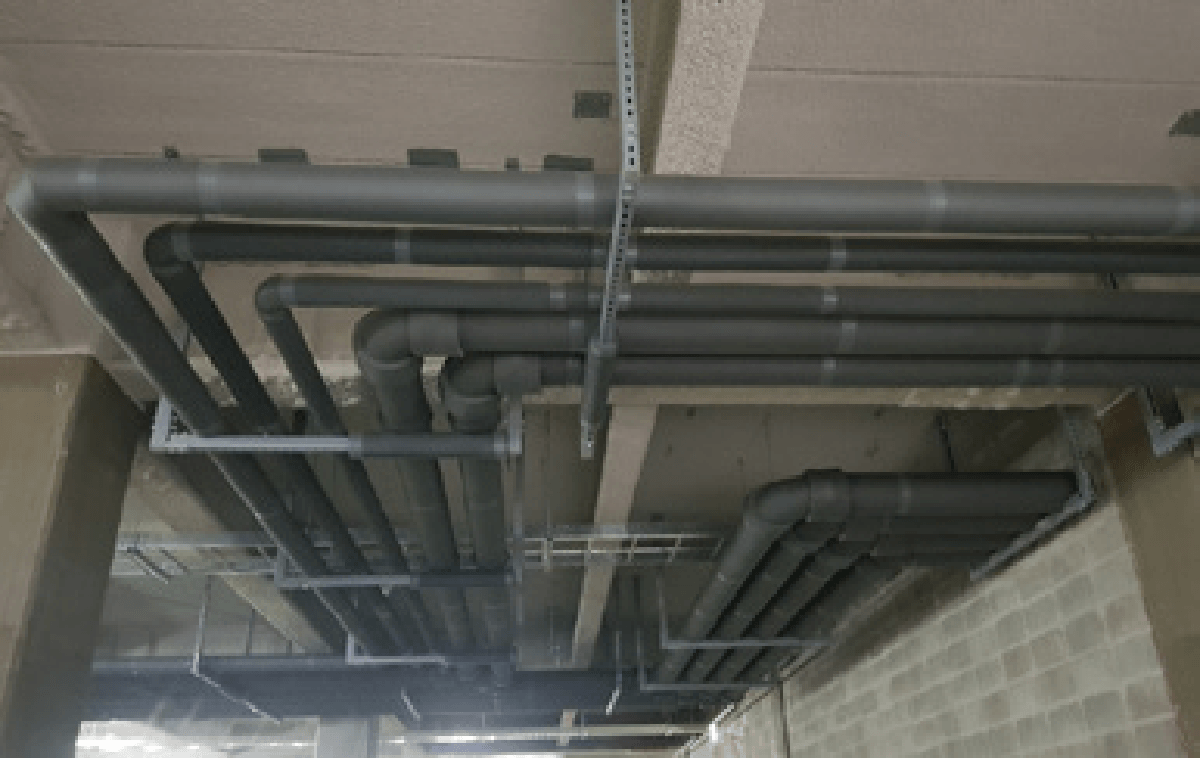

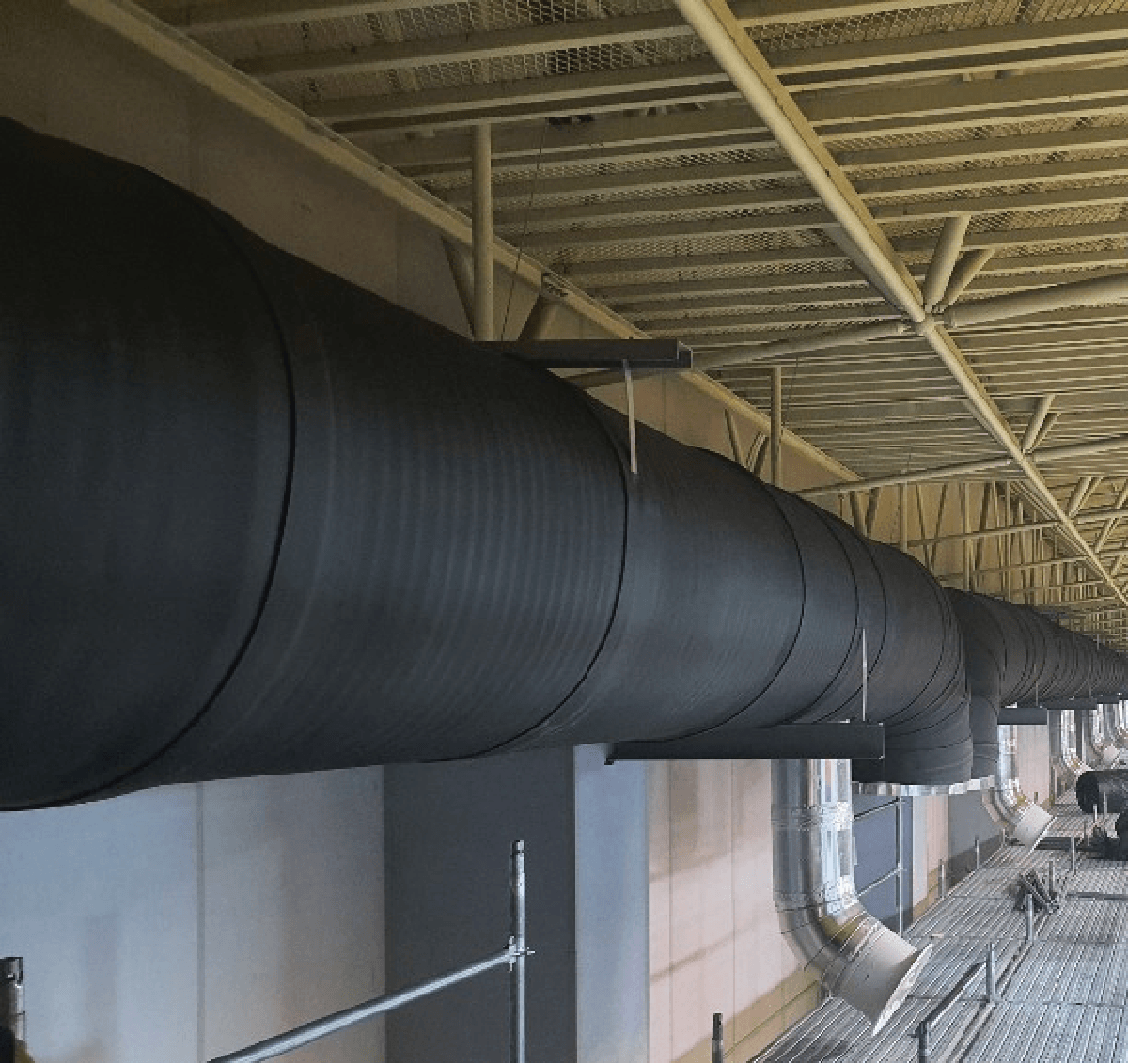

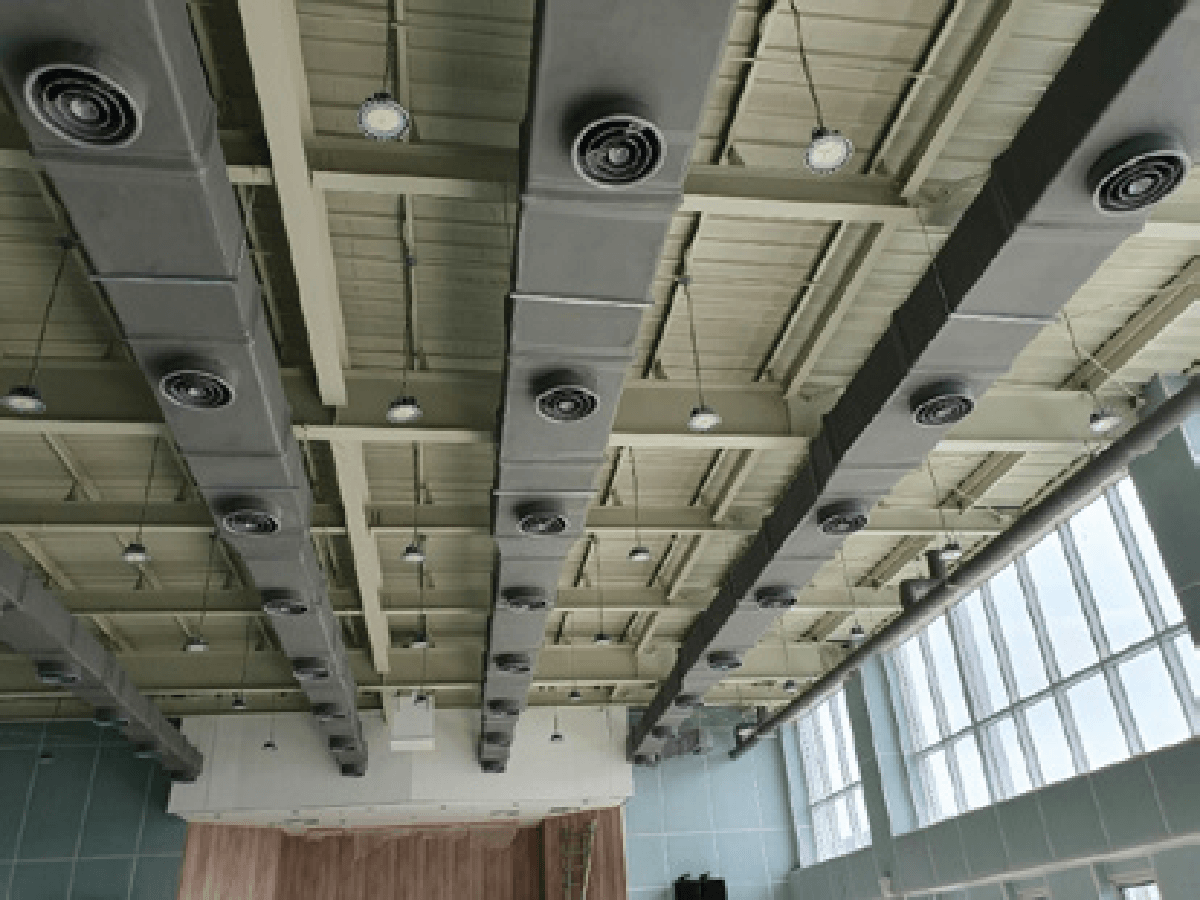

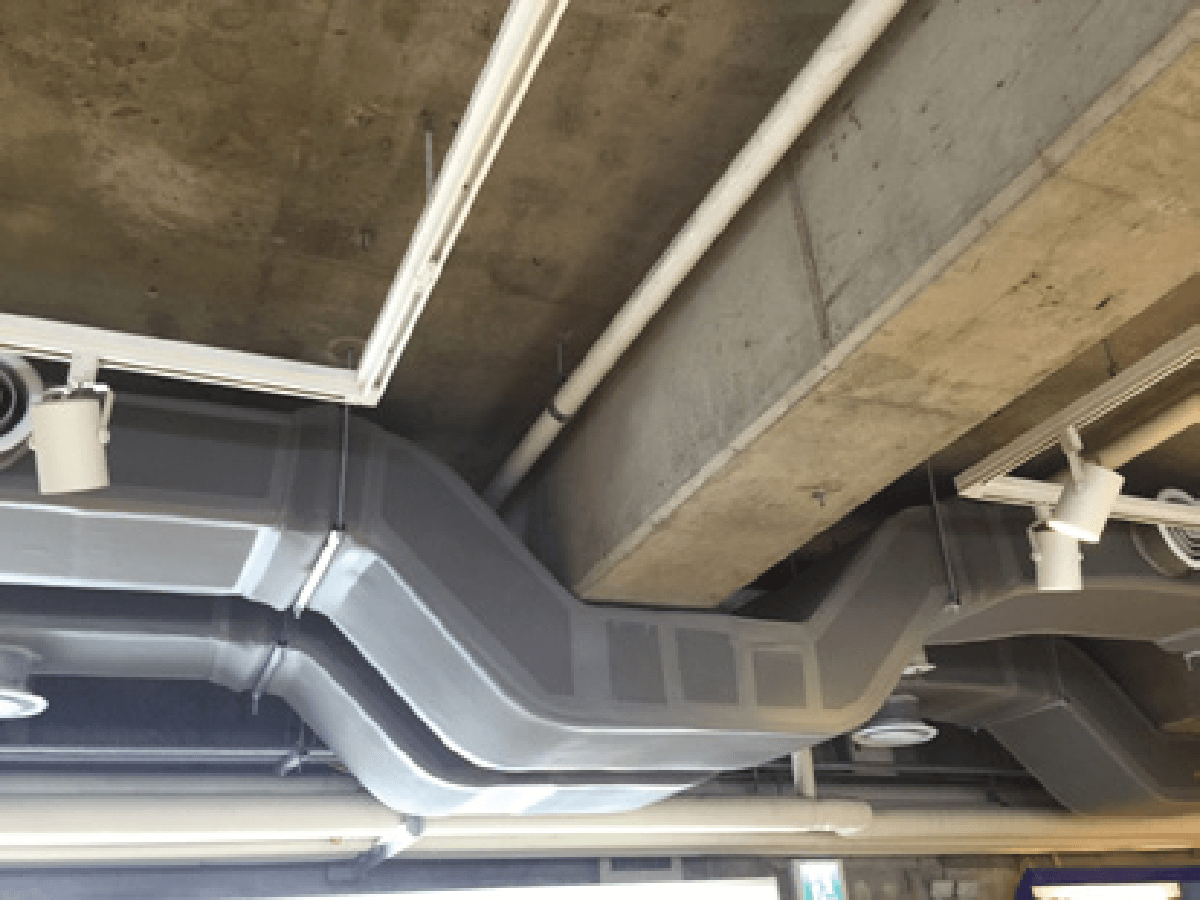

Request a quoteScudoflex NBR in use
Explore typical pipework, ductwork and mechanical-services installations for this insulation system.
Performance & composition
Values shown are taken from the supplied technical literature. Confirm project-specific requirements before specification.
| Category | Technical parameter | Specification / value | Standard reference |
|---|---|---|---|
| Fire safety | Surface flammability | FSI < 25 / SDI < 50 | ASTM E84 |
| Fire safety | Fire rating class | Class 0 | BS 476 Part 6 & 7 |
| Fire safety | Plastic flammability | HF-1, V-0, 5VA | UL 94 |
| Physical | Core material density | 240-70 kg/m³ | ASTM C302 |
| Moisture | Vapour diffusion resistance | μ > 17,000 | BS EN 12086 |
| Moisture | Water vapour permeability | 1.56 E-09 g/m²·s·Pa | ASTM E96 |
| Thermal | Thermal conductivity at 10°C | 0.032 W/m·K | ASTM C518 |
| Thermal | Thermal conductivity at 23°C | 0.033 W/m·K | ASTM C518 |
| Thermal | Thermal conductivity at 35°C | 0.035 W/m·K | ASTM C518 |
| Durability | Corrosive tendency | Safe for steel, stainless & copper | DIN 1988 |
| Environmental | Ozone depletion potential | 0 | — |
| Biological / health | Fungal and bacterial resistance | No growth observed | ASTM G21 / ISO 22196 |
| Biological / health | RoHS compliance | Fully compliant | RoHS 3 2015/863 |
Broad coverage across tubes, rolls and sheets.
Tubes are available for nominal internal diameters from 6 mm to 114 mm, in insulation thicknesses from 6 mm to 32 mm. Rolls and sheets are available in thicknesses from 6 mm to 50 mm, including self-adhesive options. Refer to the brochure for complete codes, pack quantities and tolerances.
